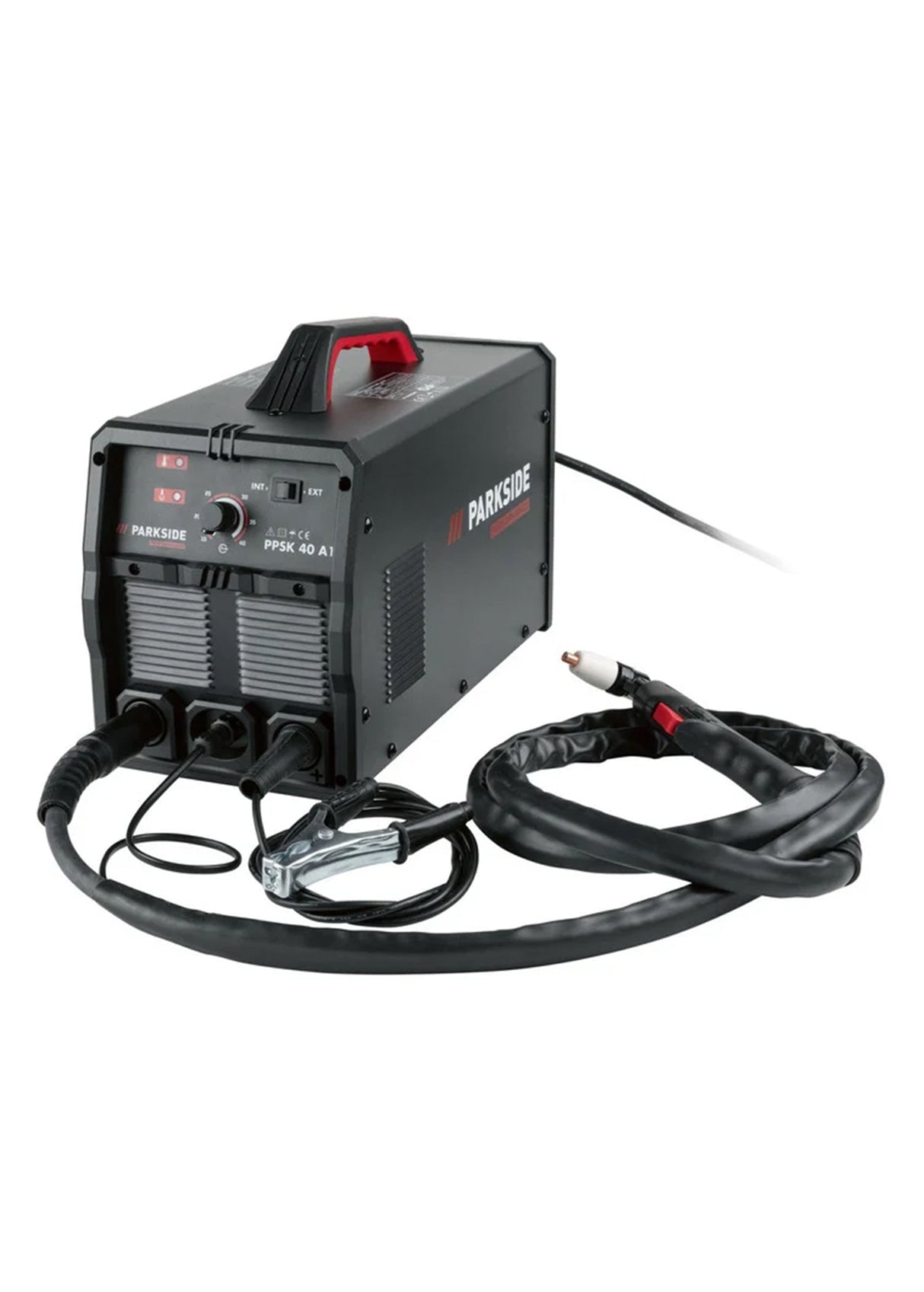

Plasma Cutter With Integrated Compressor
Description
Description
Plasma cutter with integrated compressor �PPSK 40 A1�
With integrated compressor � external compressed air supply not required
Completely pre-assembled and ready for use
Also ideal for mobile use � compact design and low weight
Electronically controlled, calm and uniform plasma jet
For precise and clean cuts up to 12 mm material thickness
Suitable for cutting steel, iron, stainless steel, aluminum and copper
Continuously adjustable cutting current (15 to 40 A)
High-quality 2.5 m cutting cable with interchangeable burner attachments and removable roller guide
Grounding cable (2 m) with strong clamp
0.5 m compressed air hose with quick connection system ("Quick-Connect")
Active electric fan cooling
Overload protection by thermal monitor with indicator light
Housing made of painted sheet steel with ergonomic carrying handle
Additional compressed air inlet for alternative compressed air supply via external compressor
Included accessories: 2 burner covers (1 pre-assembled), 2 electrodes (1 pre-assembled), 1 roller guide, compressed air hose with quick connection system ("Quick-Connect")
Parkside plasma cutter
Technical data and details:
Cutting process: plasma jet, electronically controlled
Cutting current: 15�40 A
Max. cutting capacity: steel 12 mm / iron 10 mm / stainless steel 8 mm / aluminum 8 mm / copper 4 mm
Compressed air supply: via integrated compressor
Working pressure: 4�4.5 bar
Nominal voltage: 230 V / 50 Hz
Material: sheet steel
Dimensions: approx. 341 x 223 x 244 mm
Weight: approx. 11 kg
Plasma Cutter With Integrated Compressor is backordered and will ship as soon as it is back in stock.
